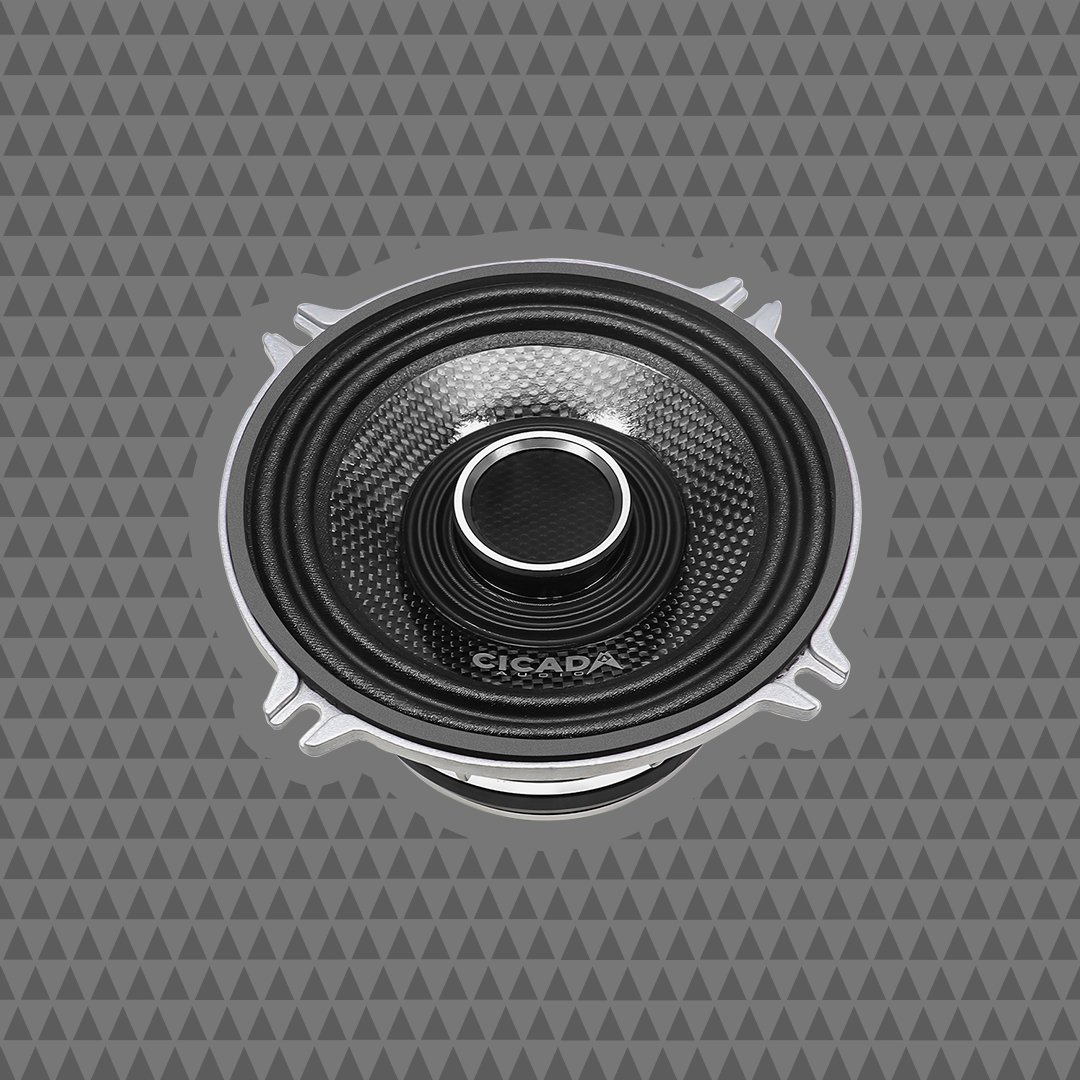

CHX525.4

5.25″ Pro Coax Horn 4Ω

FEATURES:

• Nanofram™ Horn Cover
  • Exclusive Cicada All-Weather Design for protection from rain
• Rain or Shine™ all weather performance design
• Available in 4Ω or 2Ω versions
• Aluminum tweeter diaphragm material
  • Brighter sound
  • More efficient
• 1″ OFC copper wire tweeter voice coils offer great sound while generating less heat
• Carbon Matrix Composite™ (CMC™) cone
  • Lightweight / rigid / high temp
  • Maximized efficiency / super strong
• Black coat™ 1.75” high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
• N35SH Neodymium magnet
• Die cast Aluminum custom tooled basket with Vortex Flow Venting™
• Warranty: 2 years

SPECIFICATIONS:

• 4Ω -5.25” PRO coaxial horn driver
• Power handling: 150W RMS/300W MAX
• Voice Coil: 1.5-inch/38.1mm Mid-bass & 1.00-inch/25.4mm Tweeter
  • High temperature design
• Tweeter Dome: Aluminum
• Crossover: 12dB external custom tooled, vented, encased crossover
• Cone: Carbon Matrix Composite™
• Magnet: Neodymium
• Sensitivity: 91dB, 1W / 1M
• response 90Hz – 20kHz +/- 5dB
• Mounting Depth: 2.75-inch/69.85mm
• Mounting Diameter: 4.66-inch/118.5mm
